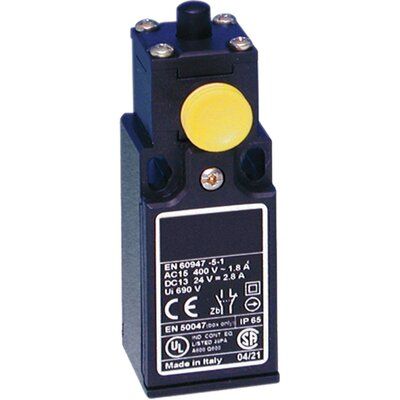

Features | Unit | FINRIP |
Contacts type | - | Zb type snap action (1NO+1NC) |
Rated current at 230V(400V) AC15 | A | 3.1(1.9) |
Protection degree EN60529 | - | IP65 |
Protection Class | - | II |
Operating temperature | °C | -25 +70 |
Rated insulation voltage Ui | V | 690 |
Service life | Cycles | > 25.000 |
Cable inlet | - | PG13,5 cable gland |
Mechnical lock | Yes/No | Yes |
Dimensions HxWxD | mm | 91x31x39 |
Weight | kg | 0.05 |
Conformity | - | CE EN60947-5-1, IEC 947-5-1 |
