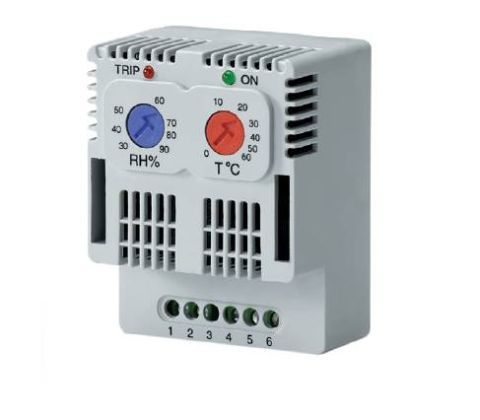

Hidrotermostats, 0/+60
Artikuls ETUH22
155,03 €
Pārdošanā
Klientu atsauksmes
Pagaidām nav atsauksmju. Atsauksmes var atstāt tikai pierakstījušies klienti, kas ir iegādājušies šo produktu. Lai atstātu atsauksmi, pierakstieties
Dalīties ar šo preci savu draugu vidū
Hidrotermostats, 0/+60
Preces apraksts
UPC: ETUH22
Brand: Alfa electric
| Features | Unit | ETUH22 |
| Power supply | V/Hz | 230/50-60 |
| Temperature setting range | °C | 0/+60 |
| Precision | °C | ±1 |
| Temperature Hysteresis | °C | 2 |
| Relative Humidity setting range | RH% | 30-90 |
| Relative Humidity Hysteresis | % | 5 |
| Reaction time | sec | 60 |
| Max. switching current | ||
| NO at 250Vac resistive load | A | 10 |
| NO at 30Vdc resistive load | A | 8 |
| NO at 240Vac motor load | Hp | 1/2 |
| NO at 120Vac motor load | Hp | 1/4 |
| NC at 250Vac resistive load | A | 10 |
| NC at 30Vdc resistive load | A | 8 |
| Contact type | - | Change over |
| Contact resistance | mOhm | < 10 |
| Service life, n. Cycles | cycles | > 100,000 |
| Electrical connections | - | 5-pole terminal for 2.5 mm² wire |
| Optical signal | - | LED |
| Casing | - | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 |
| Protection degree EN60529 | - | IP20 |
| Operating/Storage temperature | °C (°F) | -40/+80 (-40/+176) |
| Mounting | - | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | - | Vertical |
| Conformity | - | CE - UL |
| Dimensions HxWxD | mm | 68x53x38 |
| Weight | g | 105 |
| Accessories | ||
| DIN rail bracket | GUIDADINPL |
