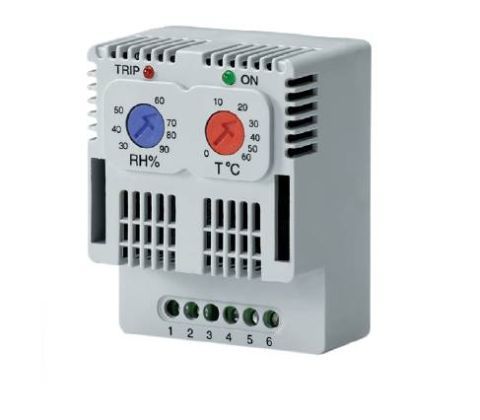

Features | Unit | ETUH11 |
Power supply | V/Hz | 115/50-60 |
Temperature setting range | °C | 0/+60 |
Precision | °C | ±1 |
Temperature Hysteresis | °C | 2 |
Relative Humidity setting range | RH% | 30-90 |
Relative Humidity Hysteresis | % | 5 |
Reaction time | sec | 60 |
Max. switching current | ||
NO at 250Vac resistive load | A | 10 |
NO at 30Vdc resistive load | A | 8 |
NO at 240Vac motor load | Hp | 1/2 |
NO at 120Vac motor load | Hp | 1/4 |
NC at 250Vac resistive load | A | 10 |
NC at 30Vdc resistive load | A | 8 |
Contact type | - | Change over |
Contact resistance | mOhm | < 10 |
Service life, n. Cycles | cycles | > 100,000 |
Electrical connections | - | 5-pole terminal for 2.5 mm² wire |
Optical signal | - | LED |
Casing | - | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 |
Protection degree EN60529 | - | IP20 |
Operating/Storage temperature | °C (°F) | -40/+80 (-40/+176) |
Mounting | - | Clip for mounting on DIN rail 35 mm EN50022 |
Installation position | - | Vertical |
Conformity | - | CE - UL |
Dimensions HxWxD | mm | 68x53x38 |
Weight | g | 105 |
Accessories | ||
DIN rail bracket | GUIDADINPL |
