Temperatūras kontrolieris 20-30 VAC/DC
Artikuls ETHDM14
98,99 €
Pārdošanā
Klientu atsauksmes
Pagaidām nav atsauksmju. Atsauksmes var atstāt tikai pierakstījušies klienti, kas ir iegādājušies šo produktu. Lai atstātu atsauksmi, pierakstieties
Dalīties ar šo preci savu draugu vidū

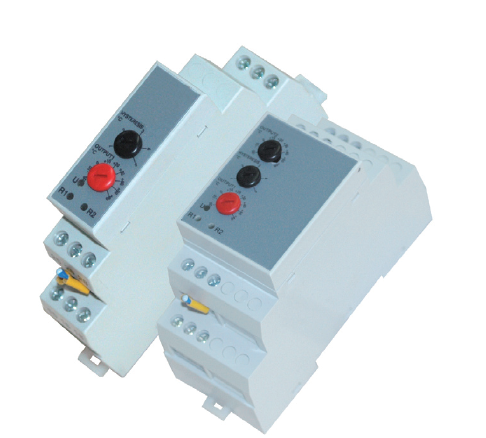

Temperatūras kontrolieris 20-30 VAC/DC
Preces apraksts
UPC: ETHDM14
Brand: Alfa electric
| Features | Unit | ETHDM14 |
| Power supply | V | 20-30 VAC/DC |
| Input | - | NTC (10k - 25°C) |
| Relay | - | 2 SPDT outputs (16A-AC1) |
| Control | - | ON/OFF |
| Measurement range | °C | NTC -20 ~ +60°C |
| Sampling rate | Hz | 12 |
| Symmetric hysteresis | - | Adjustable from +1 to +5°C on both outputs |
| Operating temperature | °C | -20 ~ +65 |
| Operating humidity (no condensate) | RH% | 30 ~ 95 |
| Housing | - | self-extinguishing plastic UL94V0 |
| Dimensions HxWxD | mm | 35x64x98mm - 2 Din rail module |
| Connessions | - | 2.5 mm² screw terminal block |
| Mounting | - | Clip for mounting on DIN rail 35 mm EN50022 |
| Conformity | - | CE |
| Weight | g | 70 |
