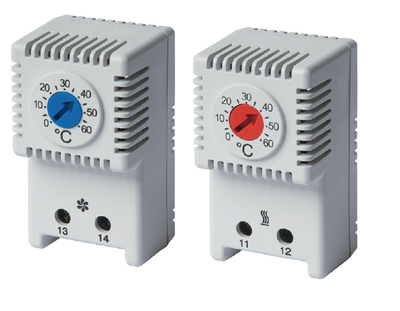

Termostats, NC, +20/+80
Artikuls THV3
17,07 €
Pārdošanā
Klientu atsauksmes
Pagaidām nav atsauksmju. Atsauksmes var atstāt tikai pierakstījušies klienti, kas ir iegādājušies šo produktu. Lai atstātu atsauksmi, pierakstieties
Dalīties ar šo preci savu draugu vidū
Termostats, NC, +20/+80
Preces apraksts
UPC: THV3
Brand: Alfa electric
| Features | Unit | THV2 |
| Contact function | - | NC |
| Temperature setting range | °C | +20/+80 |
| Precision | °C | ±4 |
| Hysteresis | °C | 7 |
| Max. switching current | - | |
| 250Vac resistive load (inductive load) | A | 10 (1.6) |
| 125Vac resistive load (inductive load) | A | 15 (2.5) |
| Max. switching power in Vdc | W | 30 |
| Temperature sensor type | - | Thermostatic bimetal |
| Contact type | - | Snap action |
| Contact resistance | mOhm | < 10 |
| Service life | cycles | > 100,000 |
| Electrical connections | - | 2-pole terminal for 2.5 mm² wire |
| Casing | - | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 |
| Protection degree EN60529 | - | IP20 |
| Operating temperature | °C (°F) | -25/+80 (-13/+176) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | - | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | - | Variable |
| Conformity | - | CE - UL |
| Dimensions HxWxD | mm | 61x34x35 |
| Weight | g | 48 |
| Accessories | ||
| DIN rail bracket | GUIDADINPL |
