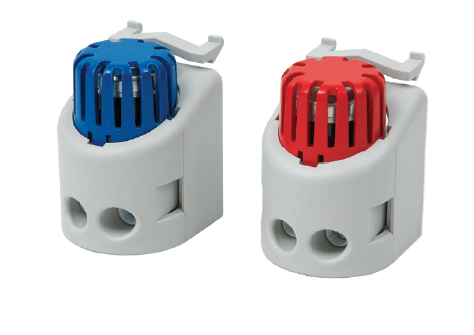

Termostats, NC, +5 (10)
Artikuls THRF05
13,63 €
Pārdošanā
Saglabāt šo produktu vēlākam
Klientu atsauksmes
Atsauksmes tikai no verificētiem klientiem
Pagaidām nav atsauksmju. Jūs varat iegādāties šo produktu un būt atstāt par to pirmo atsauksmi.
Dalīties ar šo preci savu draugu vidū
Termostats, NC, +5 (10)
Preces apraksts
UPC: THRF05
Brand: Alfa electric
| Features | Unit | THRF05 |
| Contact function | - | NC |
| Temperature set (hysteresis) | °C | +5 (10) |
| Precision | °C | ±4 |
| Max. switching current | - | |
| 240Vac resistive load (inductive load) | A | 5 (1.6) |
| 120Vac resistive load (inductive load) | A | 10 (2.0) |
| Max. switching power in Vdc | W | 30 |
| Temperature sensor type | - | Thermostatic bimetal |
| Contact type | - | Snap action |
| Contact resistance | mOhm | < 10 |
| Service life | cycles | > 100,000 |
| Electrical connections | - | 2-pole terminal for 2.5 mm² wire |
| Casing | - | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 |
| Protection degree EN60529 | - | IP20 |
| Operating temperature | °C (°F) | -40/+80 (-40/+176) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | - | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | - | Variable |
| Conformity | - | CE - UL |
| Dimensions HxWxD | mm | 43x27x35 |
| Weight | g | 35 |
| Accessories | ||
| DIN rail bracket | GUIDADINPL |
