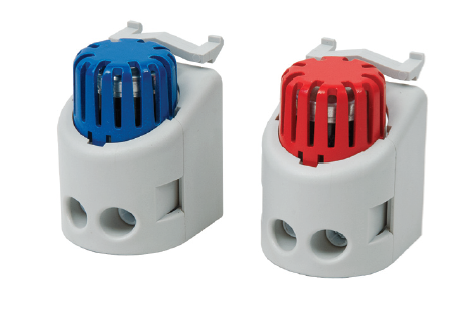

Termostats, NO, +35 (10)
Preces apraksts
UPC: THVF35
Brand: Alfa electric
| Features | Unit | THVF35 |
| Contact function | - | NO |
| Temperature set (hysteresis) | °C | +35 (10) |
| Precision | °C | ±4 |
| Max. switching current | - | |
| 240Vac resistive load (inductive load) | A | 5 (1.6) |
| 120Vac resistive load (inductive load) | A | 10 (2.0) |
| Max. switching power in Vdc | W | 30 |
| Temperature sensor type | - | Thermostatic bimetal |
| Contact type | - | Snap action |
| Contact resistance | mOhm | < 10 |
| Service life | cycles | > 100,000 |
| Electrical connections | - | 2-pole terminal for 2.5 mm² wire |
| Casing | - | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 |
| Protection degree EN60529 | - | IP20 |
| Operating temperature | °C (°F) | -40/+80 (-40/+176) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | - | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | - | Variable |
| Conformity | - | CE - UL |
| Dimensions HxWxD | mm | 43x27x35 |
| Weight | g | 35 |
| Accessories | ||
| DIN rail bracket | GUIDADINPL |
