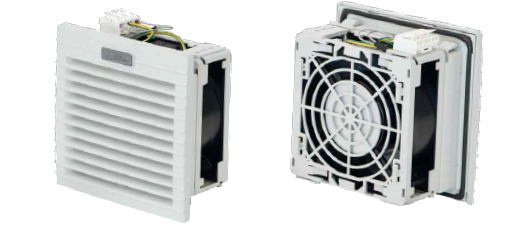

Features | Unit | ATV3200 |
Air flow rate (free blow) | m³/h | 115/125 |
Flow rate with exit filter | m³/h | 84 / 97 |
Filter mat EN779 | V/Hz | G3 |
Dimensions HxWxD | mm | 204x204x104 |
Power consumption | W | 22 / 21 |
Current consumption | A | 0.14 / 0.12 |
Overcurrent consumption | - | impedance |
Electric connection | - | 3-poles spring terminals |
Duty cycle | - | 100% |
Operating temperature | °C | - 10 / +70 (+14 / +158) |
Protection class | - | Class I |
Noise level | dB(A) | 43(49) |
Flow direction | - | reversible: default factory setting outside-in |
Bearing | - | ball |
Filter mat EN779 | - | G3 |
Service life (at 40°C) | hr | 50 000 |
Material | - | thermoplastic UL94V-0, color RAL7035, (IP55 UV resistant): thermoplastic, color RAL7035 |
Wall thickness | mm | 1.2-2.4 |
Gasket | - | foam seal gasket |
Weight (with packaging) | kg | 0.98 (1.18) |
Package dimensions | mm | 220x220x110 |
Montaggio | - | fast clip-on |
Conformity/Approvals | - | CE |
Power supply | V | ph | Hz | 230 | 1 | 50/60 |
Accessories | ||
Fan speed controller | FSC1 | |
Hood for IP56 | CUFF20B | |
Thermostat 0-60°C – NO contact | THV2 |
