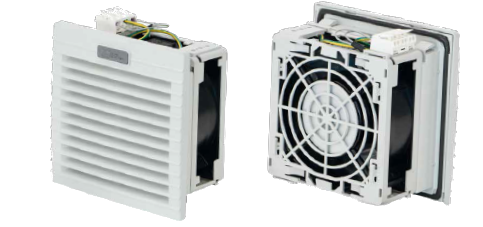

Ventilators, 230V, Air flow rate 58, 150x150x86, Cut out 125x125
Artikuls ATV2200
47,92 €
Pārdošanā
Saglabāt šo produktu vēlākam
Klientu atsauksmes
Atsauksmes tikai no verificētiem klientiem
Pagaidām nav atsauksmju. Jūs varat iegādāties šo produktu un būt atstāt par to pirmo atsauksmi.
Dalīties ar šo preci savu draugu vidū
Ventilators, 230V, Air flow rate 58, 150x150x86, Cut out 125x125
Preces apraksts
UPC: ATV2200
Brand: Nidec Control Techniques
| Features | Unit | ATV2200 |
| Air flow rate (free blow) | m³/h | 58 (64) |
| Flow rate with exit filter | m³/h | 43 (48) |
| Power supply | V/Hz | 230/50-60 |
| Dimensions HxWxD | mm | 150x150x86 |
| Power consumption | W | 22(21) |
| Current consumption | A | 0.14(0.12) |
| Overcurrent consumption | - | impedance |
| Electric connection | - | 3-poles spring terminals |
| Duty cycle | - | 100% |
| Operating temperature | °C | - 10 / +70 (+14 / +158) |
| Protection degree/class | - | IP54/Class I |
| Noise level | dB(A) | 43(49) |
| Flow direction | - | reversible: default factory setting outside-in |
| Bearing | - | ball |
| Filter mat EN779 | - | G3 |
| Service life (at 40°C) | hr | 50 000 |
| Material | - | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | - | foam seal gasket |
| Weight (with packaging) | kg | 0.76(0.83) |
| Package dimensions | mm | 165x165x90 |
| Montaggio | - | fast clip-on |
| Conformity/Approvals | - | CE |
| Accessories | ||
| Fan speed controller | FSC | |
| Hood for IP56 | CUFF10B | |
| Thermostat 0-60°C – NO contact | THV2 | |
| Filter mat, standart type | ATVF2 | |
| Filter mat, high efficency | ATVF2X |
