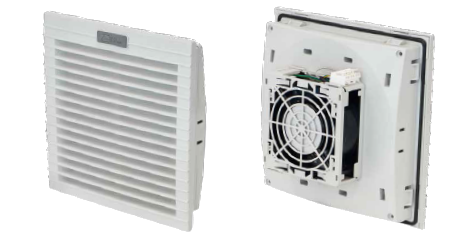

Features | Unit | ATV4224 |
Air flow rate | m³/h | 125 |
Flow rate with exit filter | m³/h | 102 |
Filter mat EN779 | V/Hz | G3 |
Dimensions HxWxD | mm | 250x250x107 |
Power consumption | W | 9 |
Current consumption | A | 0.37 |
Overcurrent consumption | - | impedance |
Electric connection | - | 2-poles spring terminals |
Duty cycle | - | 100% |
Operating temperature | °C | - 10 / +70 (+14 / +158) |
Protection class | - | Class I |
Noise level | dB(A) | 45 |
Flow direction | - | reversible: default factory setting outside-in |
Bearing | - | ball |
Service life (at 40°C) | hr | 50 000 |
Material | - | thermoplastic UL94V-0, color RAL7035, (IP55 UV resistant): thermoplastic, color RAL7035 |
Wall thickness | mm | 1.2-2.4 |
Gasket | - | foam seal gasket |
Weight (with packaging) | kg | 1.00 (1.20) |
Package dimensions | mm | 220x220x110 |
Montaggio | - | fast clip-on |
Conformity/Approvals | - | CE |
Power supply | V | ph | Hz | 24 DC |
Accessories | ||
Fan speed controller | - | |
Hood for IP56 | CUFF20B | |
Thermostat 0-60°C – NO contact | THV2 |
