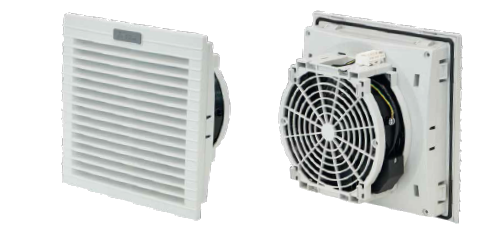

Ventilators, G3, Air flow rate 255, 250x250x128, Cut out 224x224
Artikuls ATV4324
135,41 €
Pārdošanā
Klientu atsauksmes
Pagaidām nav atsauksmju. Atsauksmes var atstāt tikai pierakstījušies klienti, kas ir iegādājušies šo produktu. Lai atstātu atsauksmi, pierakstieties
Dalīties ar šo preci savu draugu vidū
Ventilators, G3, Air flow rate 255, 250x250x128, Cut out 224x224
Preces apraksts
UPC: ATV4324
Brand: Nidec Control Techniques
| Features | Unit | ATV4324 |
| Air flow rate | m³/h | 255 |
| Flow rate with exit filter | m³/h | 202 |
| Filter mat EN779 | V/Hz | G3 |
| Dimensions HxWxD | mm | 250x250x128 |
| Power consumption | W | 26 |
| Current consumption | A | 1.08 |
| Overcurrent consumption | - | impedance |
| Electric connection | - | 2-poles spring terminals |
| Duty cycle | - | 100% |
| Operating temperature | °C | - 10 / +70 (+14 / +158) |
| Protection class | - | Class I |
| Noise level | dB(A) | 61 |
| Flow direction | - | reversible, default factory setting outside-in (inside-out for UPR, 55PR and VPR models) |
| Bearing | - | ball |
| Service life (at 40°C) | hr | 50 000 |
| Material | - | thermoplastic UL94V-0, color RAL7035, (IP55 UV resistant): thermoplastic, color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | - | foam seal gasket |
| Weight (with packaging) | kg | 1.53 (1.73) |
| Package dimensions | mm | 270x270x165 |
| Montaggio | - | fast clip-on |
| Conformity/Approvals | - | CE |
| Power supply | V | ph | Hz | 24 DC |
| Accessories | ||
| Fan speed controller | - | |
| Hood for IP56 | CUFF20B | |
| Thermostat 0-60°C – NO contact | THV2 |
