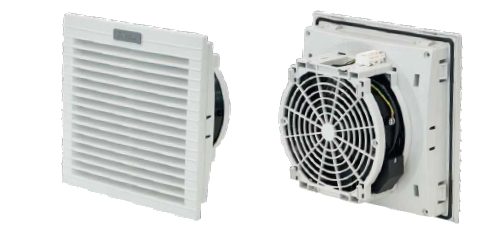

Ventilators, G3, Air flow rate 410, 250x250x136, Cut out 224x224
Artikuls ATV4401
160,91 €
Pārdošanā
Saglabāt šo produktu vēlākam
Klientu atsauksmes
Atsauksmes tikai no verificētiem klientiem
Pagaidām nav atsauksmju. Jūs varat iegādāties šo produktu un būt atstāt par to pirmo atsauksmi.
Dalīties ar šo preci savu draugu vidū
Ventilators, G3, Air flow rate 410, 250x250x136, Cut out 224x224
Preces apraksts
UPC: ATV4401
Brand: Nidec Control Techniques
| Features | Unit | ATV4401 |
| Air flow rate (free blow) | m³/h | 410 (445) |
| Flow rate with exit filter | m³/h | 280 / 302 |
| Filter mat EN779 | V/Hz | G3 |
| Dimensions HxWxD | mm | 250x250x136 |
| Power consumption | W | 70 / 90 |
| Current consumption | A | 0.80 / 0.76 |
| Overcurrent consumption | - | impedance |
| Electric connection | - | 4-p s t* |
| Duty cycle | - | 100% |
| Operating temperature | °C | - 10 / +70 (+14 / +158) |
| Protection class | - | Class I |
| Noise level | dB(A) | 65 (68) |
| Flow direction | - | reversible, default factory setting outside-in (inside-out for UPR, 55PR and VPR models) |
| Bearing | - | ball |
| Service life (at 40°C) | hr | 50 000 |
| Material | - | thermoplastic UL94V-0, color RAL7035, (IP55 UV resistant): thermoplastic, color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | - | foam seal gasket |
| Weight (with packaging) | kg | 2.74 (2.94) |
| Package dimensions | mm | 270x270x165 |
| Montaggio | - | fast clip-on |
| Conformity/Approvals | - | CE |
| Power supply | V | ph | Hz | 115 | 1 | 50/60 |
| Accessories | ||
| Fan speed controller | FSC1 | |
| Hood for IP56 | CUFF20B | |
| Thermostat 0-60°C – NO contact | THV2 |
