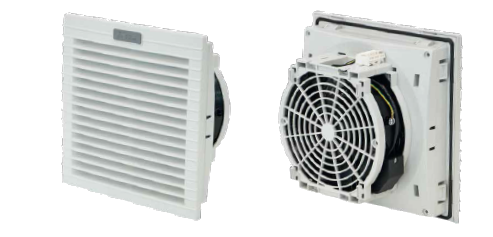

Features | Unit | ATV4440 |
Air flow rate (free blow) | m³/h | 410 (445) |
Flow rate with exit filter | m³/h | 280 / 302 |
Filter mat EN779 | V/Hz | G3 |
Dimensions HxWxD | mm | 250x250x136 |
Power consumption | W | 60 / 70 |
Current consumption | A | 0.18 / 0.15 |
Overcurrent consumption | - | impedance |
Electric connection | - | 4-p s t* |
Duty cycle | - | 100% |
Operating temperature | °C | - 10 / +70 (+14 / +158) |
Protection class | - | Class I |
Noise level | dB(A) | 65 (68) |
Flow direction | - | reversible, default factory setting outside-in (inside-out for UPR, 55PR and VPR models) |
Bearing | - | ball |
Service life (at 40°C) | hr | 50 000 |
Material | - | thermoplastic UL94V-0, color RAL7035, (IP55 UV resistant): thermoplastic, color RAL7035 |
Wall thickness | mm | 1.2-2.4 |
Gasket | - | foam seal gasket |
Weight (with packaging) | kg | 2.74 (2.94) |
Package dimensions | mm | 270x270x165 |
Montaggio | - | fast clip-on |
Conformity/Approvals | - | CE |
Power supply | V | ph | Hz | 400 | 3 | 50/60 |
Accessories | ||
Fan speed controller | FSC1 | |
Hood for IP56 | CUFF20B | |
Thermostat 0-60°C – NO contact | THV2 |
