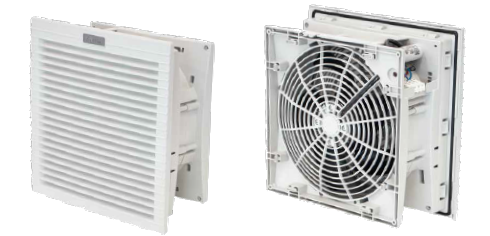

Ventilators, G3, Air flow rate 520, 325x325x154, Cut out 291x291
Artikuls ATV5501
214,95 €
Pārdošanā
Saglabāt šo produktu vēlākam
Klientu atsauksmes
Atsauksmes tikai no verificētiem klientiem
Pagaidām nav atsauksmju. Jūs varat iegādāties šo produktu un būt atstāt par to pirmo atsauksmi.
Dalīties ar šo preci savu draugu vidū
Ventilators, G3, Air flow rate 520, 325x325x154, Cut out 291x291
Preces apraksts
UPC: ATV5501
Brand: Nidec Control Techniques
| Features | Unit | ATV5440 |
| Air flow rate (free blow) | m³/h | 700(770) |
| Flow rate with exit filter | m³/h | 520(575) |
| Filter mat EN779 | V/Hz | G3 |
| Dimensions HxWxD | mm | 325x325x154 |
| Power consumption | W | 130(180) |
| Current consumption | A | 1.10(1.62) |
| Overcurrent consumption | - | thermal |
| Electric connection | - | 3-poles spring terminals * |
| Duty cycle | - | 100% |
| Operating temperature | °C | - 10 / +70 (+14 / +158) |
| Protection class | - | IP54 / Class I |
| Noise level | dB(A) | 72(73) |
| Flow direction | - | reversible, default factory setting outside-in |
| Bearing | - | ball |
| Service life (at 40°C) | hr | 50 000 |
| Material | - | ABS UL94V-0 color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | - | foam seal gasket |
| Weight (with packaging) | kg | 3.55(3.80) |
| Package dimensions | mm | 340X340X180 |
| Montaggio | - | fast clip-on |
| Conformity/Approvals | - | CE |
| Power supply | V | ph | Hz | 115/50-60 |
| Accessories | ||
| Filter mat, standard type | ATVF5 | |
| Hood for IP56 | CUFF30B | |
| Thermostat 0-60°C – NO contact | THV2 | |
| Versions | ||
| UL-code ending | - | |
| EMC-code ending | M |
